Floor Coating Robot

Overview

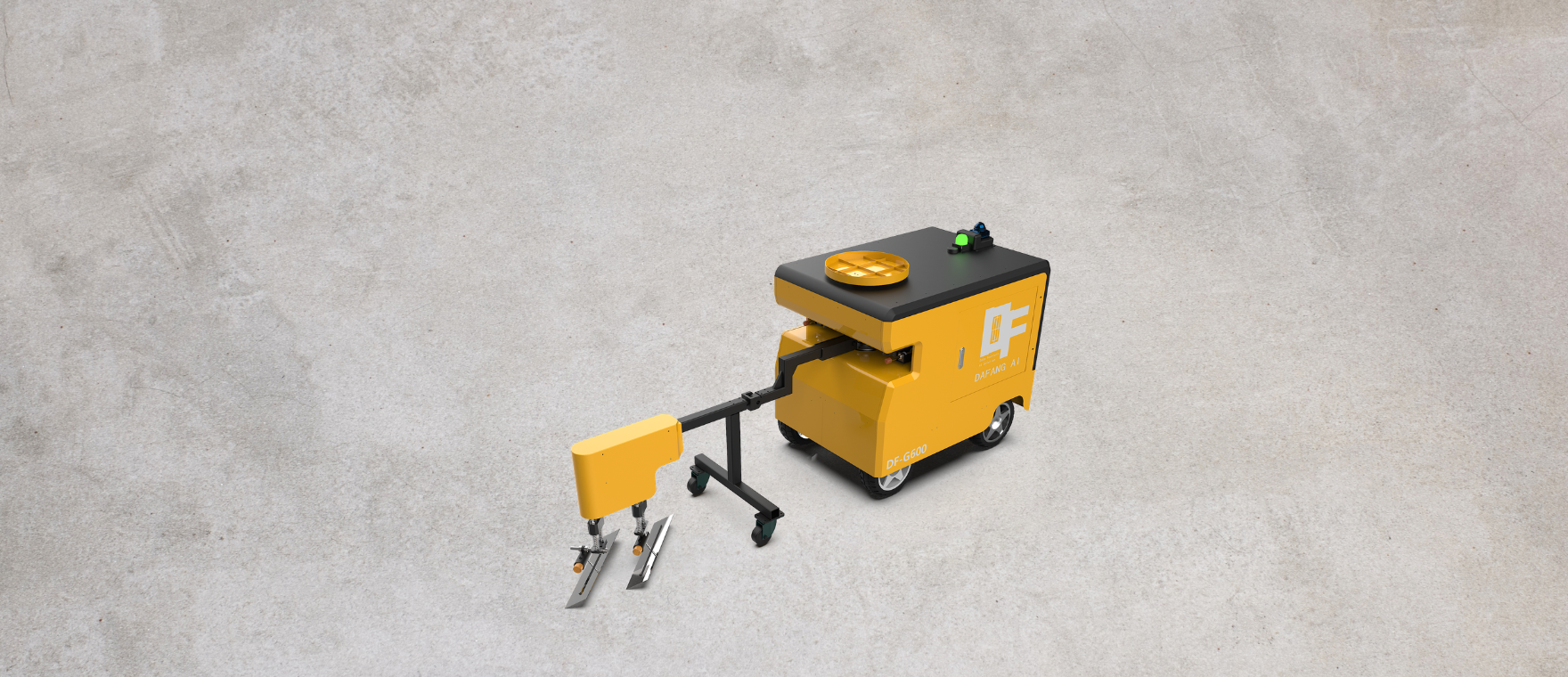

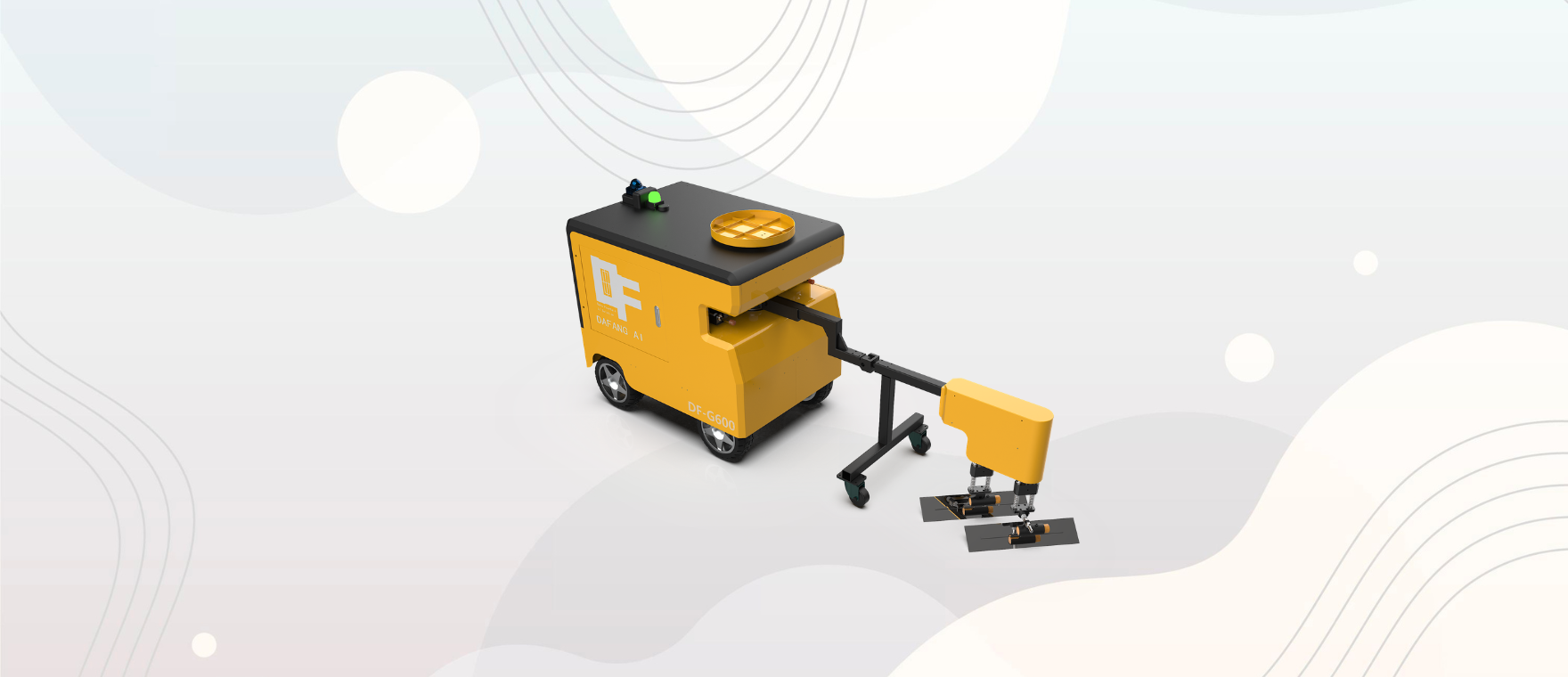

DFG600 Floor Coating Robot

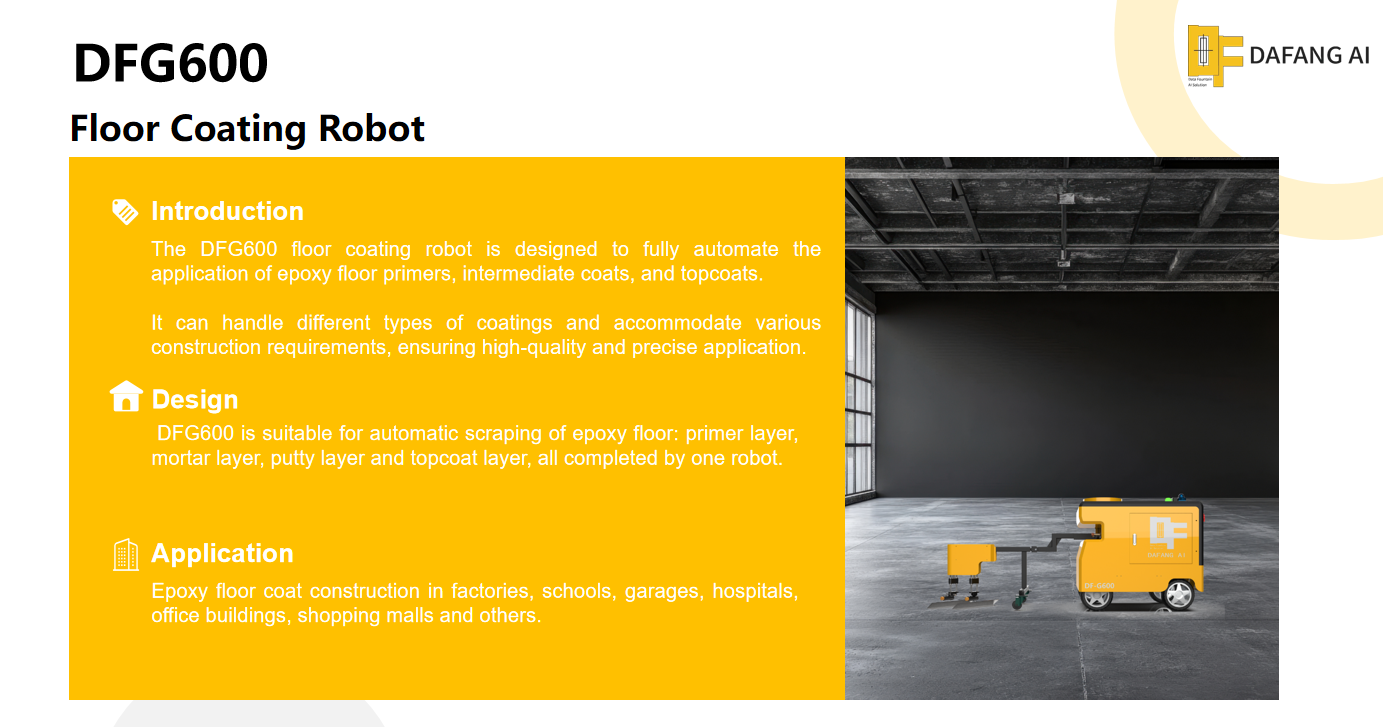

The DFG600 floor coating robot is designed to fully automate the application of epoxy floor primers, intermediate coats, and topcoats.

It can handle different types of coatings and accommodate various construction requirements, ensuring high-quality and precise application.

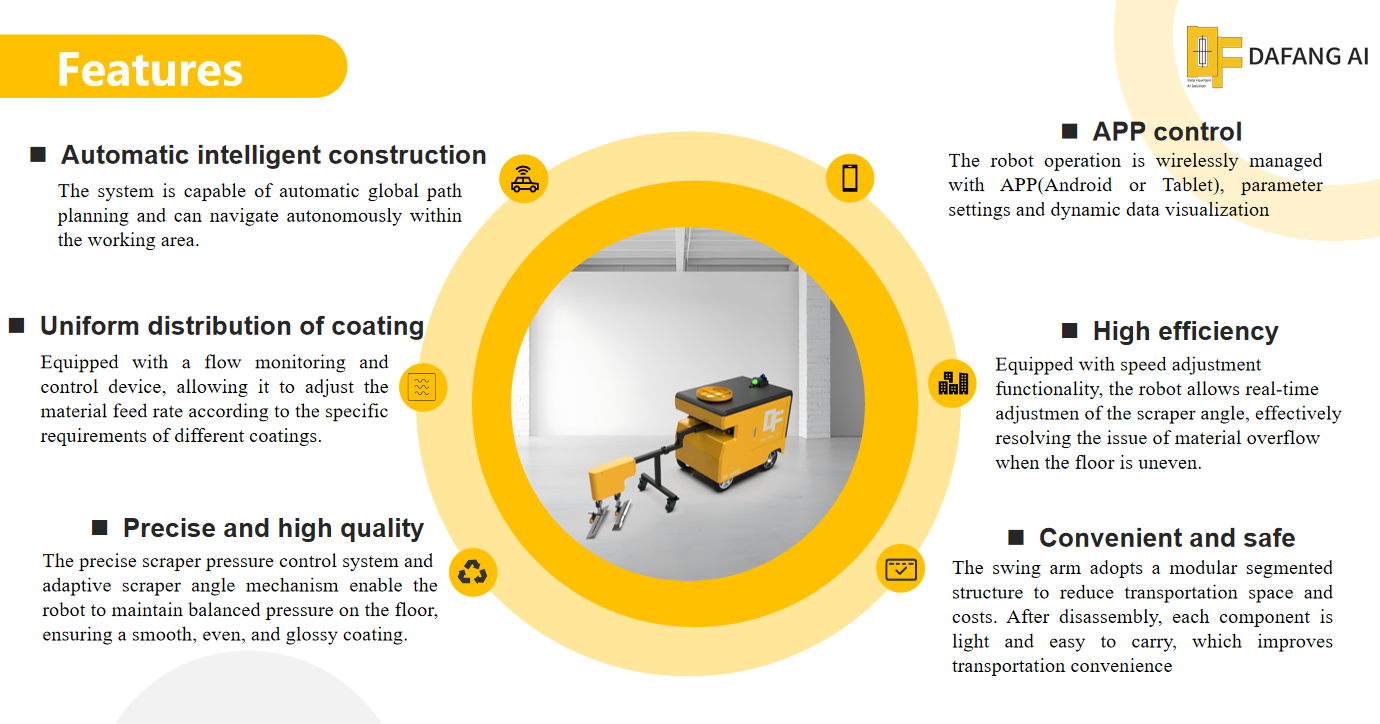

Product Highlights

Automatic intelligent construction

The system is capable of automatic global path planning and can navigate autonomously within the working area.
Uniform distribution of coating

Equipped with a flow monitoring and control device, allowing it to adjust the material feed rate according to the specific requirements of different coatings.
Precise and high quality

The precise scraper pressure control system and adaptive scraper angle mechanism enable the robot to maintain balanced pressure on the floor, ensuring a smooth, even, and glossy coating.
APP control

The robot operation is wirelessly managed with APP(Android or Tablet), parameter settings and dynamic data visualization
High efficiency

Equipped with speed adjustment functionality, the robot allows real-time adjustmen of the scraper angle, effectively resolving the issue of material overflow when the floor is uneven.
Convenient and safe

The swing arm adopts a modular segmented structure to reduce transportation space and costs. After disassembly, each component is light and easy to carry, which improves transportation convenience
